Sony Vaio P disassembly photos

Blitz50 · #1 02-02-2009, 11:55 AM

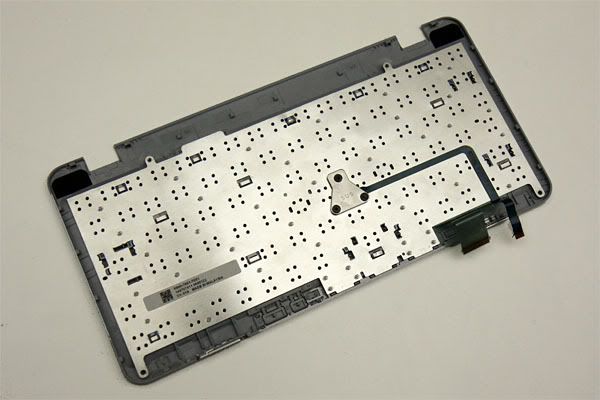

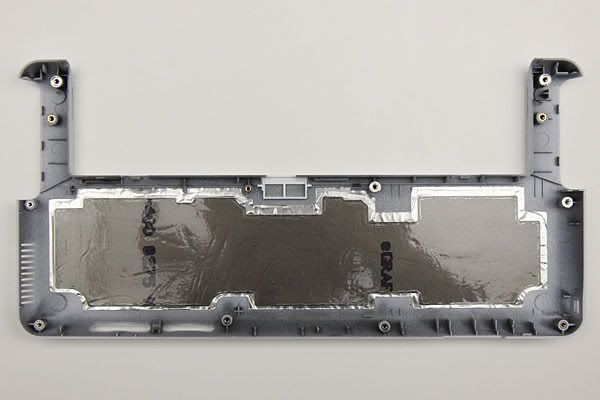

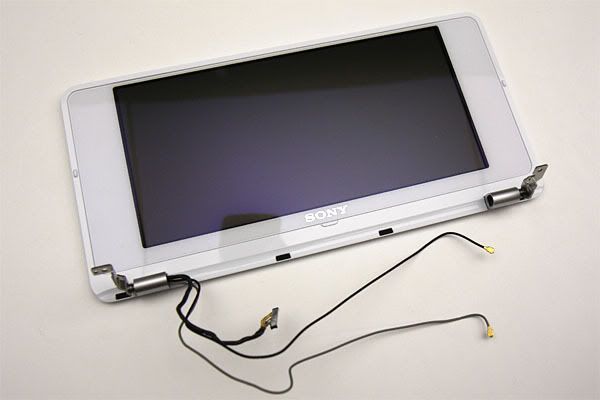

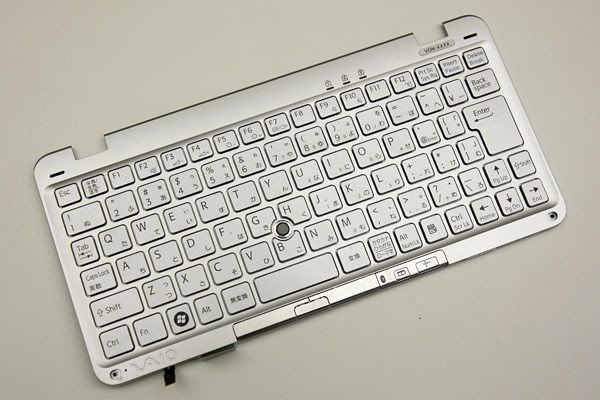

Here are the disassembly photos of the Sony Vaio P.

Blitz50 · #2 02-02-2009, 12:04 PM

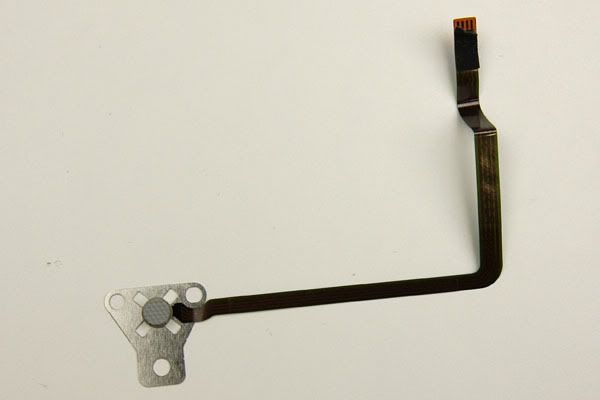

Mouse/Nub:

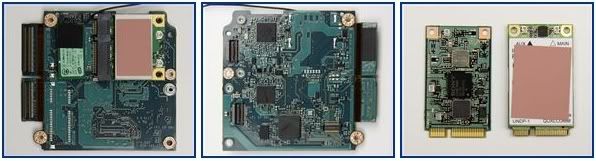

Main board: (front/left photo) (back/right photo)

Blitz50 · #3 02-02-2009, 12:18 PM

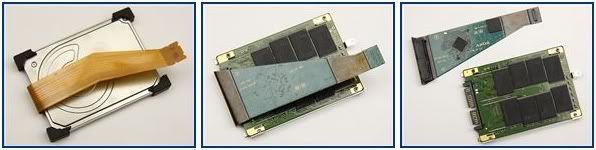

HDD and SSD: (HDD/left photo) (SSD/middle & right photo)

Bluetooth 2.1 + EDR modules: (front/left photo) (back/middle photo)
IEEE802.11a/b/g/n wireless WAN module: (right photo)

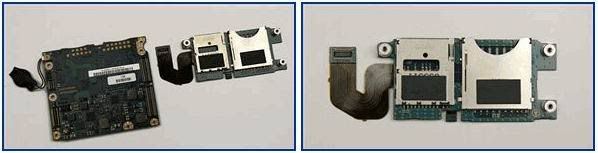

SDHC compatible SD memory card / MMC and Memory Stick PRO slot:

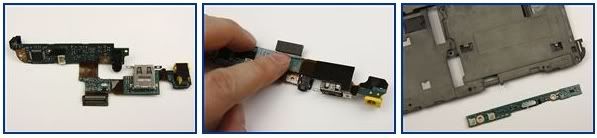

DC input, USB, Audio inputs:

All photos via: plusd.itmedia.co.jp

Jenn · #4 02-02-2009, 12:38 PM

Excellent, Blitz50! Thanks.

leletyM3 · #5 02-02-2009, 10:09 PM

-cj- · #6 02-04-2009, 07:07 PM

Does anyone know how to pry the thing apart after removing the two visible screws in the battery bay?

myvaiop · #7 02-17-2009, 03:30 PM

VAIO P13 got dissected at umpcfever.com. It's the basic model with 1.33GHz CPU and 60GB HDD.

Because here in SE Asia the VAIO P is not available with HSDPA and GPS option, the mini PCI-Express slot and SIM-Card holder is missing.

Anyway, watching pics of dissected devices is always interesting.

compulady · #8 02-17-2009, 03:48 PM

Cool! Thanks!

marcoma · #9 02-17-2009, 11:12 PM

ummm... anyone with some hi-def pictures so we can get the clock generator type??? I'm not quite giving up on setfsb giving us a bit more umpff....

Saku-wan · #10 02-18-2009, 06:14 PM

Hello!
Here is another disassembly manual. Looks very easy. Sorry it's in Japanese. Click at pictures to zoom.

scottyinco · #11 02-25-2009, 03:30 AM

Quote:

Originally Posted by -cj-

Does anyone know how to pry the thing apart after removing the two visible screws in the battery bay?

yes. you remove the silver pads at the front of the keyboard. there are 2 screws under there. when they are removed, you can slide the keyboard unit forward amd remove it.

protagonist · #12 03-07-2009, 07:44 AM

Hi.
Had someone already tried to replace the Harddrive with a SSD?
I'm not shure if Sony using a standard ZIF-Connector and maybe if a 1.8" SSD from, let's say RunCore, or a similar device will fit and work.

Jenn · #13 03-07-2009, 01:49 PM

@ protagonist: http://forum.pocketables.net/showthread.php?t=1818

protagonist · #14 03-07-2009, 02:43 PM

I did a search for those topics, but i assume my english is just too bad to hit the right answers. :-x

Haineko · #15 03-18-2009, 02:09 PM

I just can't remove the keyboard on my Vaio P. The only places that I can start to remove is in the corners where the screws sat but I can't get more than 1 cm before it gets stuck. Anyone that have a more detailed desricption on how to remove the keyboard?

EDIT: I got it open at the front but around the corners on the short sides seems impossible. If i try to lift the keyboard up the motherboard and everything inside comes along. I would be really thankful if someone could give me some pointers
